Custom Metal Dome Array is metal domes carrier backed with adhesive tape. In this type, normaly it's double-layer, the spacer attached under Mylar.

For the material, the mylar is the transparent, but the spacer have the transparant and white two kinds. You can choice which is better suitable for you.

There are air holes between the domes, it will provide the good click feeling when you pressed the metal domes. Besides this, it can help to block duct coming into the adhesive tape.

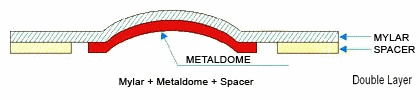

You can see the structure of this item as below:



Cuctom Dome Array Specifications:

1.Structure: Double Layers

2.Material: Mylar + Adhesive + Spacer + Adhesive + snap domes

3.Color: Mylar: transparent; Spacer: white or transparent

4.Thikness: Mylar: 0.025mm; Spacer: 0.05mm

5.Available Domes: C-series, F-series, T-series, O-series

If you have the inquiry of our custom metal dome array, please do feel free to contact us anytime.
